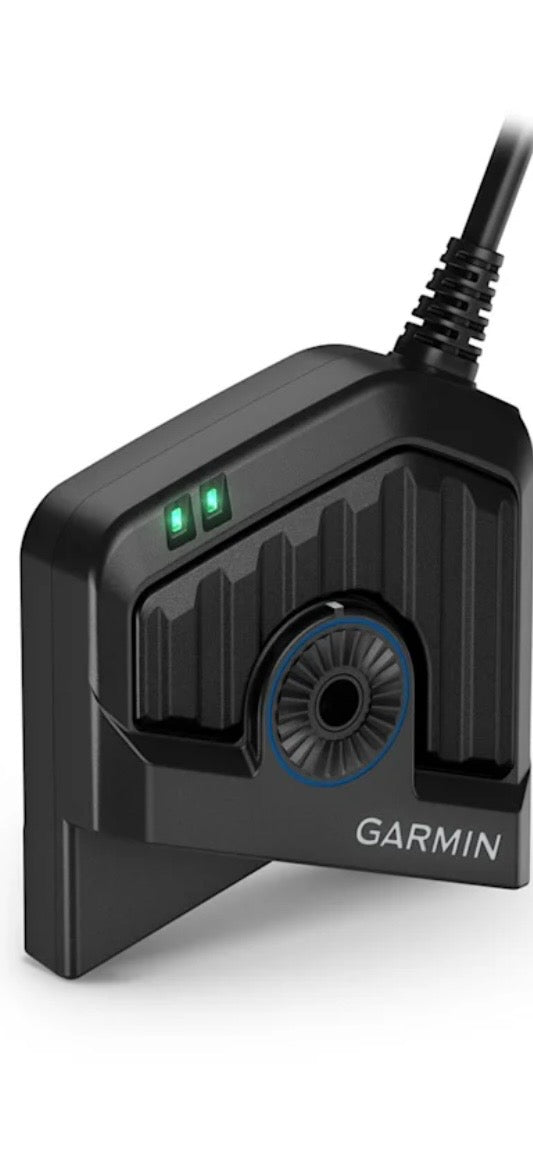

LiveScope™ 2 HD Transducer LVS42HD (Pre Order)

LiveScope™ 2 HD Transducer LVS42HD (Pre Order)

General
TRANSDUCER BEAMWIDTH Forward: 20° x 165°
Down, Perspective: 20° x 180°
TRANSDUCER CABLE LENGTH 5.5 m (18 ft)
TRANSDUCER NUMBER OF PINS 7
DIMENSION 5.2” x 5.3” x 1.9” (13.3 x 13.4 x 4.8 cm)
WEIGHT

3.62 lbs (1.646 kg)
TEMPERATURE RANGE Operating: 0 C to 40 C

Electrical Features
POWER INPUT 10-35 V
POWER USAGE 32 W max
FUSE 7.5 A
COMPASS-SAFE DISTANCE 4"

Sonar Features
FREQUENCY 850 kHz-1600 kHz
TRANSMIT POWER 521 W
MAXIMUM DEPTH Down and Forward: 125’
SONAR TYPE Live
TARGET SEPARATION @ 100' 12.6"
TARGET SEPARATION @ 30' 3.8"
PERSPECTIVE MODE MOUNT INCLUDED yes (adjustable angles)
WATER DETECTION TRANSMIT CONTROL

Networking & Connections
GARMIN MARINE NETWORK PORTS

1 BlueNet (small connector) with GMN1 Adapter
POWER CONNECTION yes (2-wire)
$2,199.99

Garmin

9 In Stock

Add to wishlist

General
TRANSDUCER BEAMWIDTH Forward: 20° x 165°
Down, Perspective: 20° x 180°
TRANSDUCER CABLE LENGTH 5.5 m (18 ft)
TRANSDUCER NUMBER OF PINS 7
DIMENSION 5.2” x 5.3” x 1.9” (13.3 x 13.4 x 4.8 cm)
WEIGHT

3.62 lbs (1.646 kg)
TEMPERATURE RANGE Operating: 0 C to 40 C

Electrical Features
POWER INPUT 10-35 V
POWER USAGE 32 W max
FUSE 7.5 A
COMPASS-SAFE DISTANCE 4"

Sonar Features
FREQUENCY 850 kHz-1600 kHz
TRANSMIT POWER 521 W
MAXIMUM DEPTH Down and Forward: 125’
SONAR TYPE Live
TARGET SEPARATION @ 100' 12.6"
TARGET SEPARATION @ 30' 3.8"
PERSPECTIVE MODE MOUNT INCLUDED yes (adjustable angles)
WATER DETECTION TRANSMIT CONTROL

Networking & Connections
GARMIN MARINE NETWORK PORTS

1 BlueNet (small connector) with GMN1 Adapter
POWER CONNECTION yes (2-wire)
